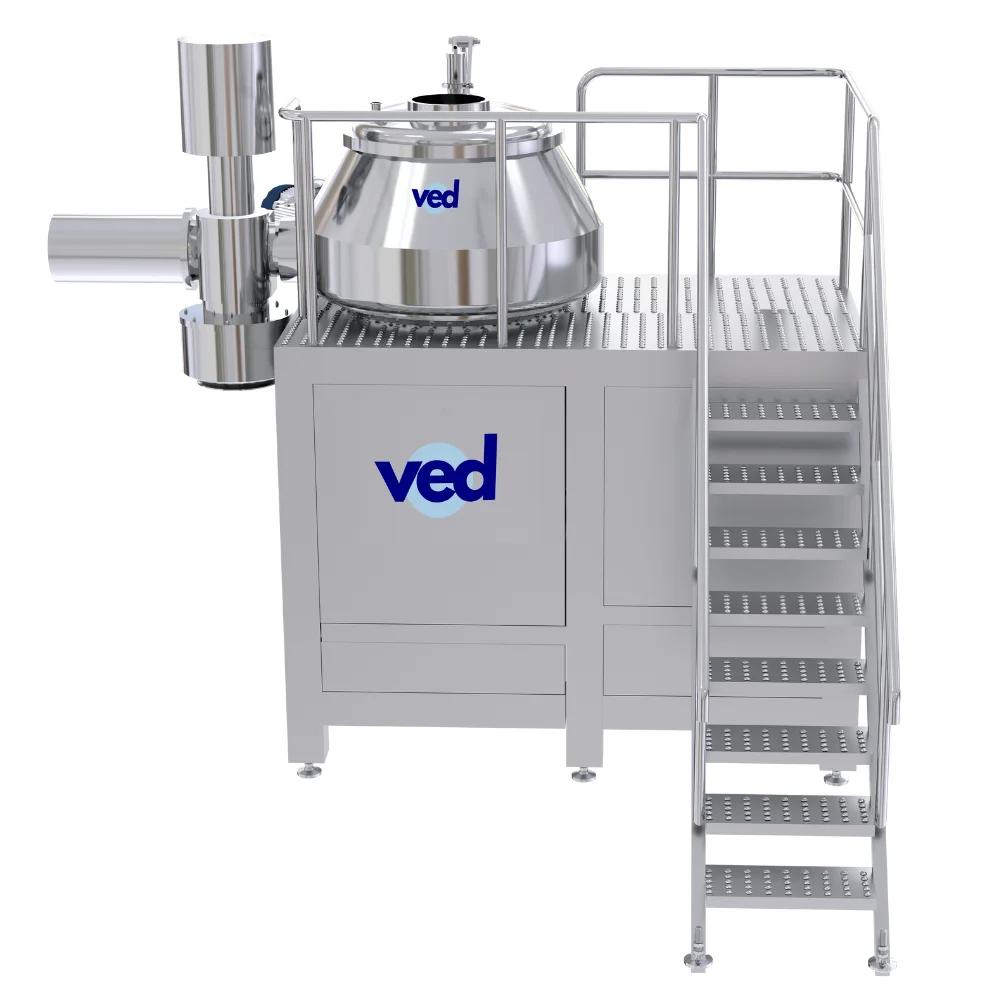

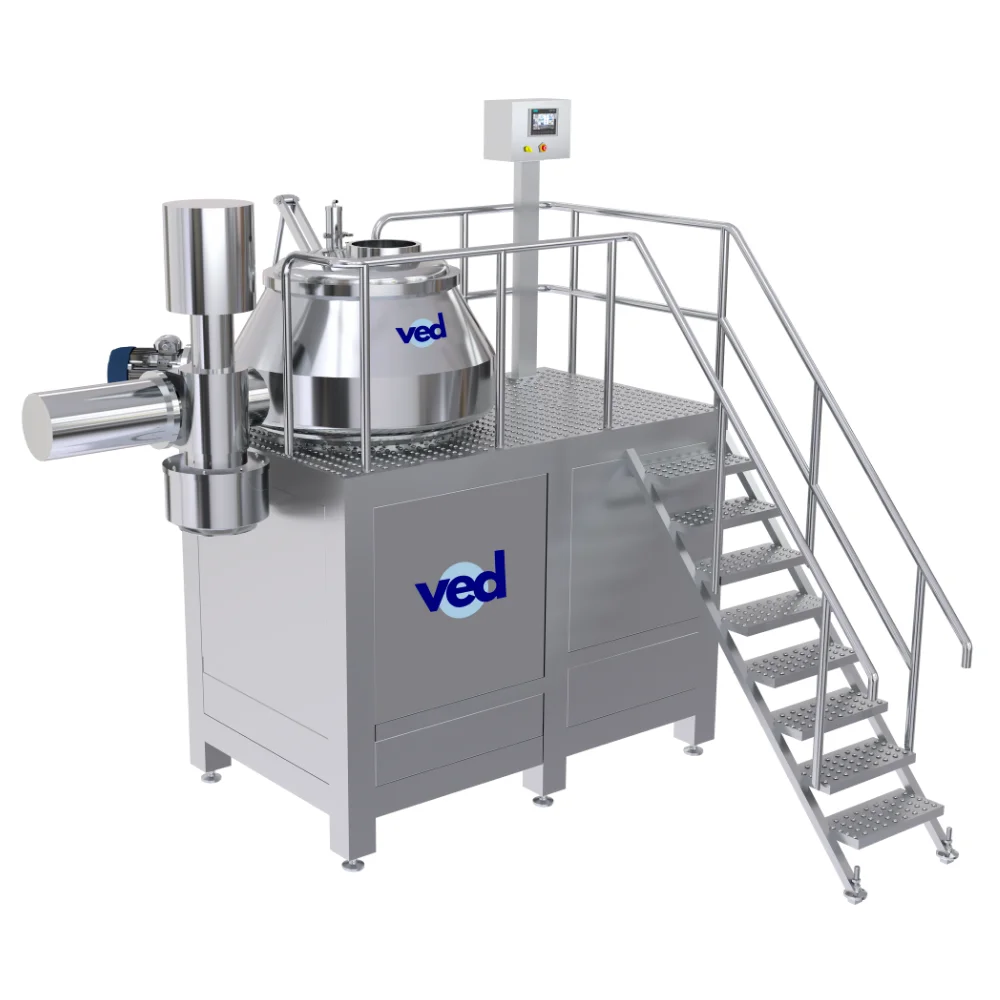

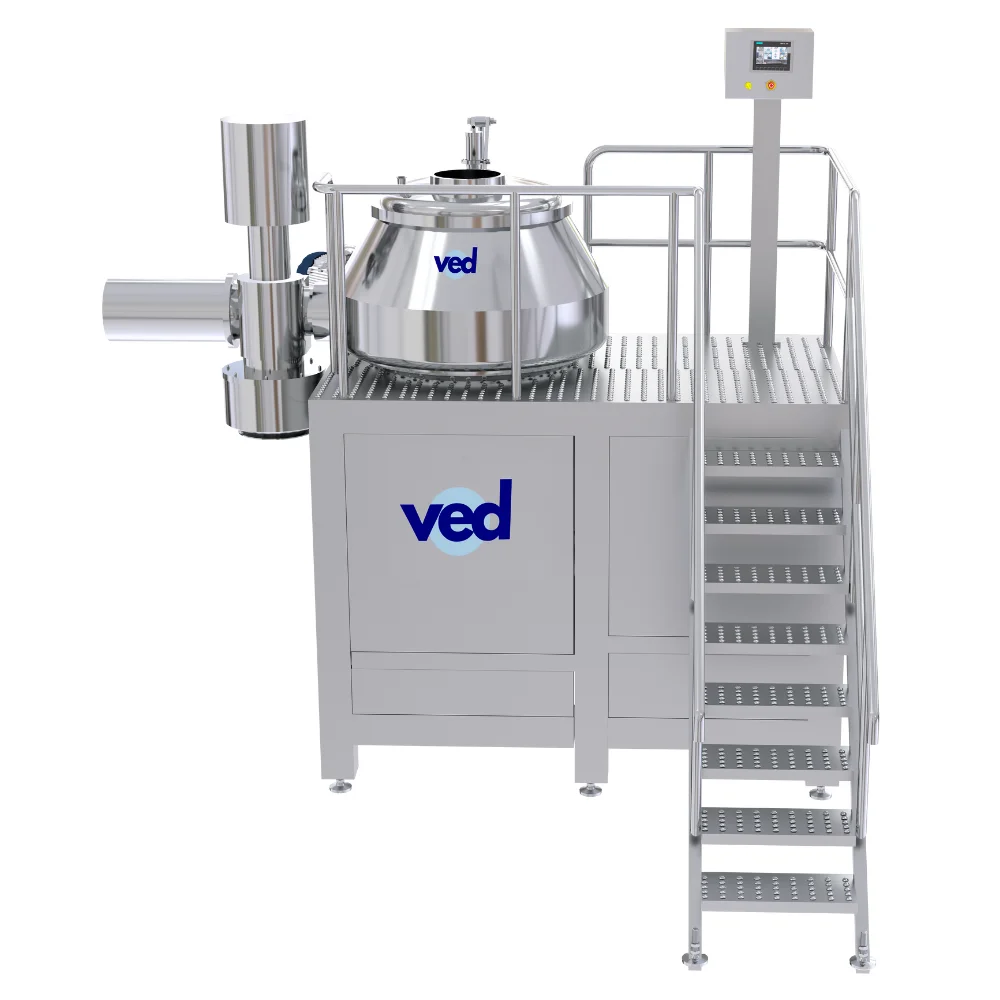

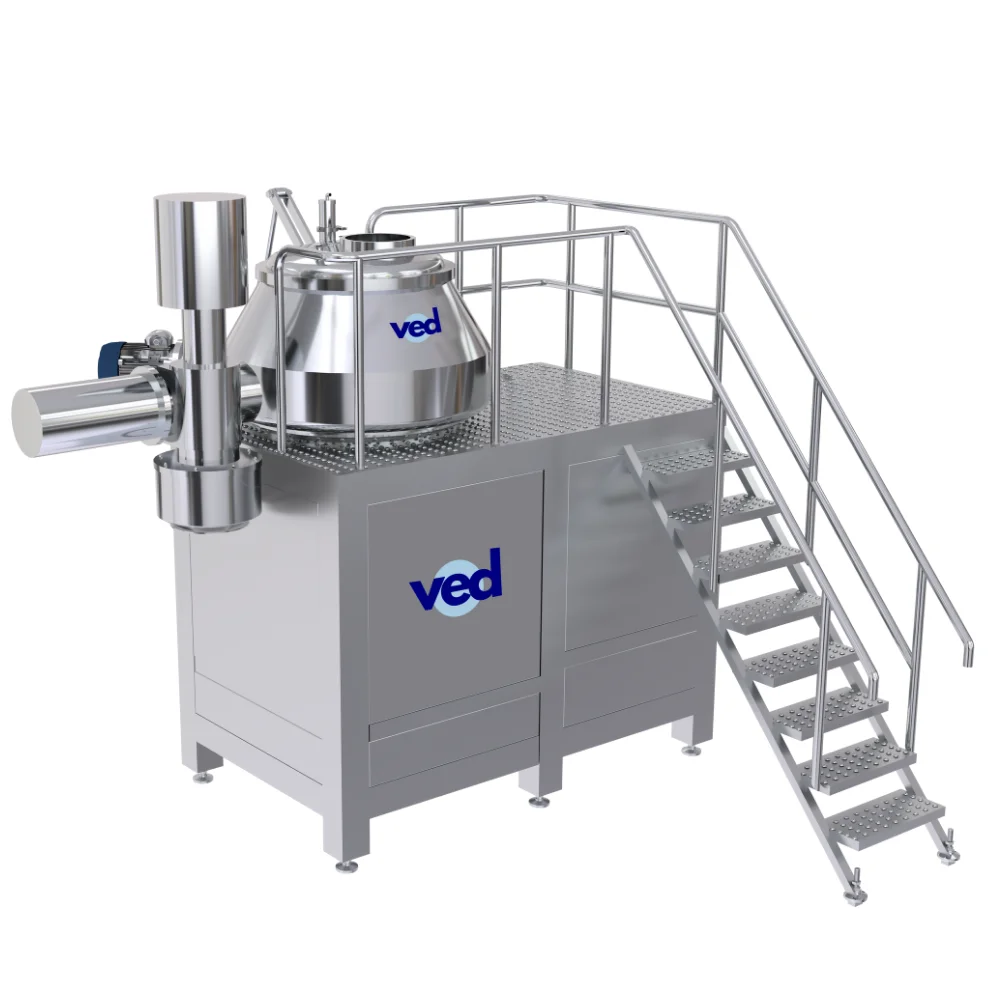

Rapid Mixer Granulator
Rapid Mixer Granulator (RMG) is a high-performance, multifunctional machine used for efficient and homogenous mixing, wet granulation, and drying of powders and granules. It is designed to achieve rapid and thorough mixing of dry and wet components, ensuring consistent blend uniformity. This efficiency leads to shorter processing times and higher productivity. It offers:
- Efficient mixing
- Granulation precision
- Flexibility
- Easy of cleaning
- Customization
APPLICATION
Pharmaceuticals: In pharmaceutical manufacturing, our RMGs are used to blend APIs and excipients, ensuring uniformity in drug formulations.
Chemicals: Chemical industries utilize our RMGs for the homogenization of diverse chemical compounds, promoting consistent quality and performance.
Cosmetics: Cosmetic companies use our RMGs to create uniform mixtures and granules for a wide range of beauty and personal care products.
Key Components of Rapid Mixer Granulator
Main Mixing Bowl
This is the primary container where the mixing and granulation processes take place. It is usually made of stainless steel and comes in various sizes to accommodate different batch sizes.
Impeller
Impellers are fixed at the bottom of a dome-shaped stainless-steel bowl. These impellers break up the wet mass into small pieces and granules. It is responsible for the rapid and uniform blending of dry and wet materials within the mixing bowl. It rotates at a high speed to achieve efficient mixing.
Chopper
The chopper or granulator blade is designed to break down agglomerates and further reduce the size of materials during the granulation process. Its primary function is to cut the lumps into smaller fragments and works in conjunction with the mixing impeller.
Control Panel
The control panel provides operators with the ability to set and monitor various parameters, such as mixing speed, granulation time, and temperature. It allows for precise control of the RMG’s operation.
Discharge Port
Once the mixing and granulation processes are complete, the discharge port or valve allows for the controlled release of the granulated material from the mixing bowl. This port can be fitted with a discharge chute to direct the material into containers.
Salient Features
Easy to use, takes less time, and is simple to clean
Self-discharge is available
Our rapid mixer granulator machines come with a bowl-shaped design and no dead areas for a uniform mixing and granulation process
A safety interlocking device that prevents the operation of the machine until the mixer cover has been properly closed
Large-scale mixing can be accomplished in a shorter amount of time, and it can also produce granules and homogenous material
Comes with a radically angled mixing blade design with high-speed motion that quickens the product’s rising and tossing process for quick and equal granulation
cGMP compliant design
Anti-vibration pad
